Description

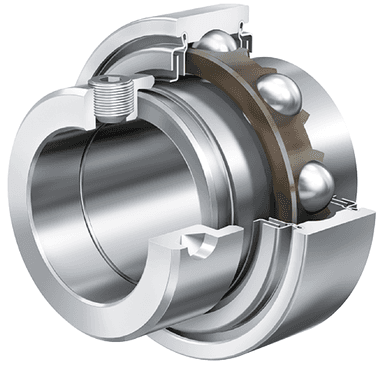

Radial insert ball bearings E..-KLL, cylindrical outer ring, location by eccentric locking collar, L seals on both sides
INA
E25-XL-KLL
Radial insert ball bearing
⌀25 × 52 × 34.9 mm
od EUR 25.73z VAT
netto EUR 20.92 · cena detaliczna
EUR 30.27−15%
E25-XL-KLL—
EUR 30.27
EUR 25.73Cheaper in larger quantities
| from 10 pcs | EUR 24.12 | −2% |
| from 50 pcs | EUR 23.63 | −4% |
| from 250 pcs | EUR 23.38 | −5% |
Last few (10)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)E25-XL-KLL#N1
EAN4012802800050
Wymiary⌀25 × 52 × 34.9 mm
Masa250 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
26 parametersIdentification
- Manufacturer
- INA
- Type
- Radial insert ball bearing
- Part number (SKU)
- E25-XL-KLL#N1
- EAN
- 4012802800050
Dimensions
- Bore d
- 25 mm
- Outside diameter D
- 52 mm
- Width B
- 34.9 mm
- Mass
- 250 g
Load ratings and operation
- Dynamic load rating C
- 14000 N
- Static load rating C₀
- 7800 N
- Sealing
- KLL
Full manufacturer specification15 parameters · expand
- Calculation factor
- 13.8
- Distance raceway
- 17.5 mm
- Fatigue load limit, radial
- 410.0 N
- Locking collar total width
- 44.5 mm
- Marketing category
- XL
- Outside diameter locking collar/locknut
- 37.5 mm
- Outside diameter seal
- 42.5 mm
- PFAS
- nein
- REACH
- REACH conform
- Rib diameter inner ring
- 33.8 mm
- RoHS
- RoHS compliant
- Sealing
- KLL
- Sealing total width
- 20.2 mm
- Width of flats
- 3.0 mm
- Width, outer ring
- 15.0 mm
