Description

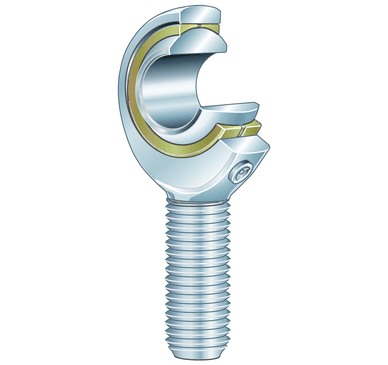

Rod end with external thread, right hand thread, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-4, dimension series K, type M, open design
INA
GAKR16-PB
Rod end
⌀16 × 32 mm
od EUR 35.99z VAT
netto EUR 29.26 · cena detaliczna
EUR 47.98−25%
GAKR16-PB—
EUR 47.98
EUR 35.99Cheaper in larger quantities
| from 10 pcs | EUR 38.23 | −2% |
| from 20 pcs | EUR 36.67 | −6% |
| from 50 pcs | EUR 37.45 | −4% |
Last few (1)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)GAKR16-PB#N1
EAN4012802521900
Wymiary⌀16 × 32 mm
Masa230 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
42 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end
- Part number (SKU)
- GAKR16-PB#N1
- EAN
- 4012802521900

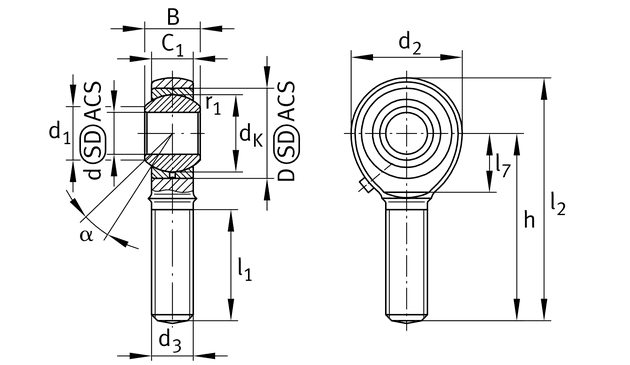

Dimensions
- Bore d
- 16 mm
- Outside diameter D
- 32 mm
- Mass
- 230 g
Load ratings and operation
- Dynamic load rating C
- 21400 N
- Static load rating C₀
- 45300 N
- Sealing
- Without
Full manufacturer specification32 parameters · expand
- Ball diameter
- 28.575 mm
- Bore diameter bearing, lower tolerance
- 0.0 mm
- Bore diameter bearing, tolerance
- H7
- Bore diameter bearing, upper tolerance
- 0.018 mm
- Clampable
- Not clampable
- Distance drilling with/shaft start
- 23.0 mm
- Edge Spacing
- 0.3 mm
- Lubrication nipple
- DIN3405 (funnel-type grease nipple)
- Maintenance
- Maintenance required
- Mounting
- External thread
- Operating temperature max.
- 250.0 °C
- Operating temperature min.
- -60.0 °C
- Outer eye diameter
- 42.0 mm
- Outer flange diameter inner ring
- 19.3 mm
- PFAS
- nein
- Radial Clearance
- 0 - 0,035
- Radial clearance, maximum
- 0.035 mm
- Radial clearance, minimum
- 0.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Shank Length External thread head
- 37.0 mm
- Shank Length External thread rod
- 66.0 mm
- Slotted
- No
- Thread Pitch
- Right-hand thread
- Thread size
- M16
- Tilt angle
- 15.0 °
- Total length external thread head
- 87.0 mm
- Width inner ring
- 21.0 mm
- Width inner ring, lower tolerance
- -0.12 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width of the rod end
- 15.0 mm
