Description

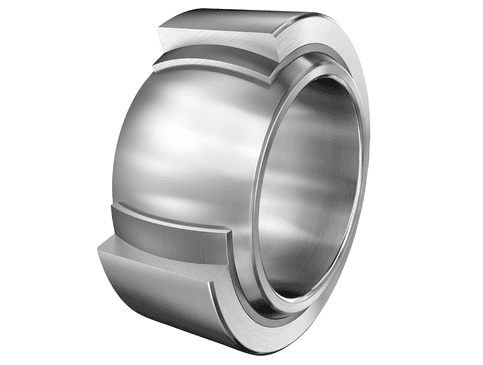

Radial spherical plain bearing, maintenance-free, sliding layer: PTFE composite, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, open design
INA
GE20-UK
Spherical plain bearing
⌀20 × 35 mm
od EUR 12.89z VAT
netto EUR 10.48 · cena detaliczna
EUR 17.20−25%
GE20-UK—
EUR 17.20
EUR 12.89Cheaper in larger quantities
| from 10 pcs | EUR 13.70 | −2% |
| from 50 pcs | EUR 13.42 | −4% |
| from 150 pcs | EUR 13.28 | −5% |
In stock (42 pcs)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)GE20-UK#N1
EAN4012802531596
Wymiary⌀20 × 35 mm
Masa66 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
39 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE20-UK#N1
- EAN
- 4012802531596
Dimensions
- Bore d
- 20 mm
- Outside diameter D
- 35 mm
- Mass
- 66 g
Load ratings and operation
- Dynamic load rating C
- 31300 N
- Static load rating C₀
- 78300 N
- Sealing
- Without
Full manufacturer specification29 parameters · expand
- Ball diameter
- 29.0 mm
- Bore diameter bearing, lower tolerance
- -0.01 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Bore lining
- Without
- Coating
- Without
- Connection measurement, inner ring
- 24.1 mm
- Edge Spacing
- 0.3 mm
- Fabric
- PTFE-composite
- Housing Connection Diameter
- 27.5 mm
- Maintenance
- Maintenance free
- Material
- Steel
- Operating temperature max.
- 200.0 °C
- Operating temperature min.
- -50.0 °C
- Outside diameter, lower tolerance
- -0.011 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- ja
- Radial Clearance
- 0 - 0,04
- Radial clearance, maximum
- 0.04 mm
- Radial clearance, minimum
- 0.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Tilt angle
- 9.0 °
- Width inner ring
- 16.0 mm
- Width inner ring, lower tolerance
- -0.12 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width Outer ring
- 12.0 mm
- Width outer ring, lower tolerance
- -0.24 mm
- Width outer ring, upper tolerance
- 0.0 mm
