Description
High speed spindle bearing HCS70..-E, adjusted, in pairs or sets, contact angle α = 25°, with ceramic balls, lip seals on both sides, non-contact, restricted tolerances
FAG
HCS7002-E-T-P4S-UL
High speed spindle bearing
⌀15 × 32 × 9 mm
od EUR 244.13z VAT
netto EUR 198.48 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HCS7002-E-T-P4S-UL—
EUR 244.13
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HCS7002-E-T-P4S-UL#N1
EAN4012801482899
Wymiary⌀15 × 32 × 9 mm
Masa35 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
41 parametersIdentification
- Manufacturer
- FAG
- Type
- High speed spindle bearing
- Part number (SKU)
- HCS7002-E-T-P4S-UL#N1
- EAN
- 4012801482899
- Cage
- T
- Tolerance class
- P4S

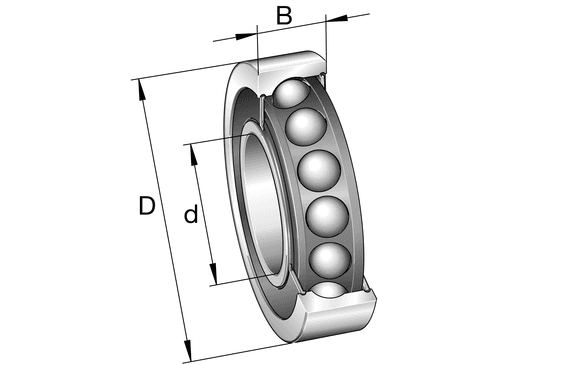

Dimensions
- Bore d
- 15 mm
- Outside diameter D
- 32 mm
- Width B
- 9 mm
- Mass
- 35 g
Load ratings and operation
- Dynamic load rating C
- 3250 N
- Static load rating C₀
- 1350 N
- Sealing
- 2RSD
Full manufacturer specification28 parameters · expand
- Arrangement bearing set
- U
- Axial rigidity heavy
- 65.0 N/µm
- Axial rigidity light
- 34.0 N/µm
- Axial rigidity medium
- 50.0 N/µm
- Cage
- T
- Contact angle
- E
- Diameter shaft shoulder
- 19.0 mm
- Diameter shaft shoulder clearance
- h12
- Distance between the apexes of the pressure cones
- 10.0 mm
- Fatigue load limit, radial
- 109.0 N
- Lift-off force heavy
- 252.0 N
- Lift-off force light
- 41.0 N
- Lift-off force medium
- 124.0 N
- Limiting speed for grease lubrication
- 80000.0 1/min
- Maximum recess radius
- 0.1 mm
- Minimum chamfer dimension
- 0.3 mm
- Operating temperature max.
- 80.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Preload
- L
- Preload force heavy
- 85.0 N
- Preload force light
- 14.0 N
- Preload force medium
- 42.0 N
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- 2RSD
- Shoulder diameter outer ring
- 29.0 mm
- Shoulder diameter outer ring clearance
- H12
