Description

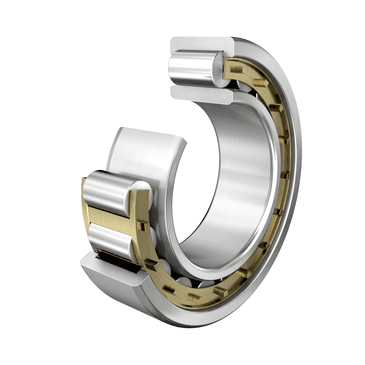

Cylindrical roller bearing NU..-XL-M1A, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
FAG
NU1026-XL-M1A-C3
Cylindrical roller bearing
⌀130 × 200 × 33 mm
od EUR 279.80z VAT
netto EUR 227.48 · cena detaliczna
EUR 344.31−19%
NU1026-XL-M1A-C3—
EUR 344.31
EUR 279.80Cheaper in larger quantities
| from 10 pcs | EUR 274.33 | −2% |
| from 50 pcs | EUR 268.74 | −4% |
Last few (1)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)NU1026-XL-M1A-C3#N1
EAN4012801392099
Wymiary⌀130 × 200 × 33 mm
Masa3.70 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
36 parametersIdentification
- Manufacturer
- FAG
- Type
- Cylindrical roller bearing
- Part number (SKU)
- NU1026-XL-M1A-C3#N1
- EAN
- 4012801392099
- Cage
- M1A
- Tolerance class
- PN
Dimensions
- Bore d
- 130 mm
- Outside diameter D
- 200 mm
- Width B
- 33 mm
- Mass
- 3.70 kg
- Radial clearance
- C3 (Group 3)
Load ratings and operation
- Dynamic load rating C
- 212000 N
- Static load rating C₀
- 250000 N
- Limiting speed
- 6500 1/min
Full manufacturer specification22 parameters · expand
- Axial displacement
- 3.9 mm
- Cage
- M1A
- Design
- Standard
- Fatigue load limit, radial
- 32000.0 N
- Marketing category
- XL
- Maximum diameter of housing shoulder
- 191.0 mm
- Maximum diameter of shaft shoulder
- 146.0 mm
- Maximum recess radius
- 2.0 mm
- Minimum chamfer dimension
- 2.0 mm
- Minimum diameter shaft shoulder
- 136.0 mm
- Minimum rib diameter outer ring
- 175.9 mm
- Minimum shaft shoulder
- 151.0 mm
- Number of rows
- 1
- Operating temperature max.
- 150.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Raceway diameter inner ring
- 148.0 mm
- Raceway diameter outer ring
- 182.0 mm
- Radial internal clearance
- C3 (Group 3)
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 3500.0 1/min
- RoHS
- RoHS compliant with declarable substances
