- Basic dynamic load rating
- 10000.0 N
- Basic static load rating
- 5000.0 N
- Bearing designation
- RALE20-XL-NPP-B
- Bearing in kit
- RALE20-XL-NPP-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No

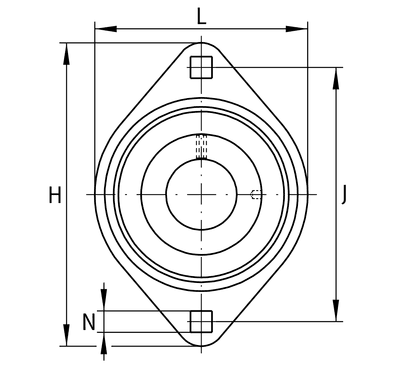

- Distance between mounting bolt centerlines (length)
- 63.5 mm
- Distance fixing bore
- 63.5 mm
- Flange width
- 58.7 mm
- Height bearing seat
- 40.5 mm
- Height flange
- 81.0 mm
- Height housing
- 7.0 mm
- Housing
- FLAN42-LST
- Housing height
- 81.0 mm
- Housing in kit
- RALT20-XL-FA125.8
- Housing length
- 58.7 mm
- Housing material
- SB
- Housing opening
- durchgehend
- Housing qty bolts
- 2
- Housing shape
- Oval
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 20.46 mm
- Inner diameter bearing
- 20.0 mm
- Load carrying capacity (housing)
- 2700.0 N
- Location on shaft
- Acc
- Manufacturing instruction
- FA125.8
- Marketing category
- XL
- Material
- Steel sheet
- Number of housings
- 2.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 42.0 mm
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Shoulder diameter housing
- 48.0 mm
- Thickness of flange
- 2.0 mm
- Total height unit
- 20.46 mm
