Description
Housing units TCJ, four-bolt flanged housing units, cast iron, eccentric locking collar, T seals
INA
TCJ35-XL-N
Flanged housing unit
⌀35 × 72 mm
od EUR 45.53z VAT
netto EUR 37.02 · cena detaliczna
TCJ35-XL-N—
EUR 45.53
Cheaper in larger quantities
| from 250 pcs | EUR 35.17 | −5% |
In stock (21 pcs)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)TCJ35-XL-N#N1
EAN4012802798739
Wymiary⌀35 × 72 mm
Masa1.54 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
55 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- TCJ35-XL-N#N1
- EAN
- 4012802798739

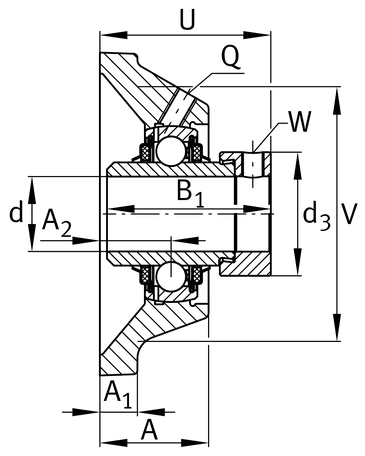

Dimensions
- Bore d
- 35 mm
- Outside diameter D
- 72 mm
- Mass
- 1.54 kg
Load ratings and operation
- Dynamic load rating C
- 27500 N
- Static load rating C₀
- 15300 N
Full manufacturer specification46 parameters · expand
- Basic dynamic load rating
- 27500.0 N
- Basic static load rating
- 15300.0 N
- Bearing designation
- GE35-XL-KTT-B
- Bearing in kit
- GE35-XL-KTT-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- M6
- Distance between mounting bolt centerlines (length)
- 92.0 mm
- Distance fixing bore
- 92.0 mm
- Distance raceway
- 21.0 mm
- Fatigue load limit, radial
- 800.0 N
- Fixing bore
- 14.0 mm
- Flange width
- 118.0 mm
- Groove
- N
- Height housing
- 32.5 mm
- Housing
- CJ07-N
- Housing height
- 118.0 mm
- Housing in kit
- TCJ35-XL-N
- Housing length
- 118.0 mm
- Housing material
- GG
- Housing opening
- combi
- Housing qty bolts
- 4
- Housing shape
- Viereck
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 53.5 mm
- Inner diameter bearing
- 35.0 mm
- Location on shaft
- Acc
- Locking collar total width
- 51.3 mm
- Marketing category
- XL
- Material
- GG
- Number of screwing holes
- 4.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 72.0 mm
- Outside diameter locking device
- 55.0 mm
- PFAS
- nein
- Protecting cap
- KASK07
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Shoulder diameter housing
- 100.0 mm
- Thickness of flange
- 12.5 mm
- Total height unit
- 53.5 mm
- Width across flats
- 5.0 mm
