Description

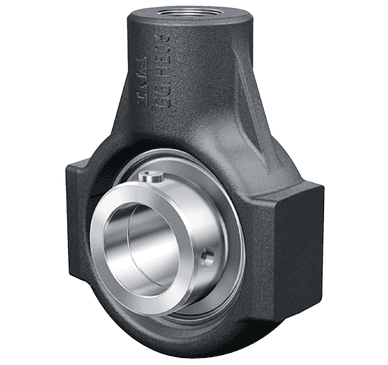

Take-up housing units THE, cast iron housing, radial insert ball bearing with eccentric locking collar, T seals
INA
THE25-XL
Take-up housing unit
⌀25 × 52 mm
od EUR 37.13z VAT
netto EUR 30.19 · cena detaliczna
EUR 44.76−17%
THE25-XL—
EUR 44.76
EUR 37.13Cheaper in larger quantities
| from 10 pcs | EUR 35.66 | −2% |
| from 50 pcs | EUR 34.93 | −4% |
| from 250 pcs | EUR 34.57 | −5% |
Last few (5)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)THE25-XL#N1
EAN4012802798876
Wymiary⌀25 × 52 mm
Masa760 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
46 parametersIdentification
- Manufacturer
- INA
- Type
- Take-up housing unit
- Part number (SKU)
- THE25-XL#N1
- EAN
- 4012802798876
Dimensions
- Bore d
- 25 mm
- Outside diameter D
- 52 mm
- Mass
- 760 g
Full manufacturer specification39 parameters · expand
- Basic dynamic load rating
- 14900.0 N
- Basic static load rating
- 7800.0 N
- Bearing designation
- GE25-XL-KTT-B
- Bearing in kit
- GE25-XL-KTT-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- M6
- Distance shaft axis
- 64.0 mm
- Height bearing seat
- 64.0 mm
- Height housing fixing side
- 35.0 mm
- Housing
- HE05
- Housing height
- 70.0 mm
- Housing in kit
- THE25-XL
- Housing length
- 99.0 mm
- Housing material
- GG
- Housing opening
- durchgehend
- Housing qty bolts
- 1
- Housing shape
- Loch_unten
- Housing sort
- Take-up
- Housing split
- Nein
- Housing total width
- 70.0 mm
- Housing width
- 44.5 mm
- Inner diameter bearing
- 25.0 mm
- Length of guidance face
- 38.0 mm
- Length total
- 99.0 mm
- Location on shaft
- Acc
- Marketing category
- XL
- Material
- GG
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 52.0 mm
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Thread depth
- 22.0 mm
- Thread fixing bore
- M20
- Width housing
- 28.0 mm
