- Axial runout
- 2.0 µm
- Basic dynamic load rating, axial
- 46000.0 N
- Basic static load rating, axial
- 94000.0 N
- Bearing frictional torque
- 0.45 Nm
- Bore diameter lower tolerance
- -0.005 mm
- Bore diameter upper tolerance
- 0.0 mm
- Connection thread for lubrication
- M6

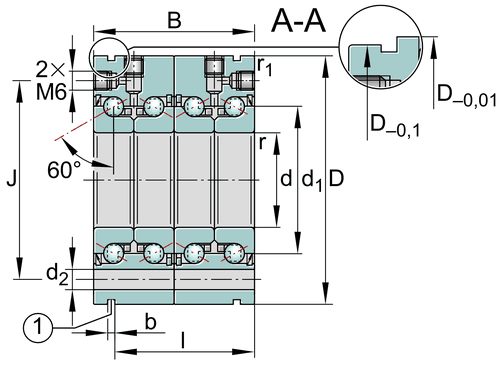

- Contact angle
- 60.0 °
- Distance of extraction slot
- 47.0 mm
- Fatigue load limit, axial
- 5700.0 N
- Fixing holes diameter
- 6.8 mm
- Limiting speed for grease lubrication
- 6600.0 1/min
- Marketing category
- XL
- Mass moment of inertia
- 0.564 kg*cm²
- Maximum diameter of housing
- 43.0 mm
- Minimum chamfer dimension
- 0.3 mm
- Minimum diameter shaft
- 25.0 mm
- Number of bearings
- 2AP
- Number of holes in adjacent construction
- 7.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- Outside diameter lower tolerance
- -0.01 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- nein

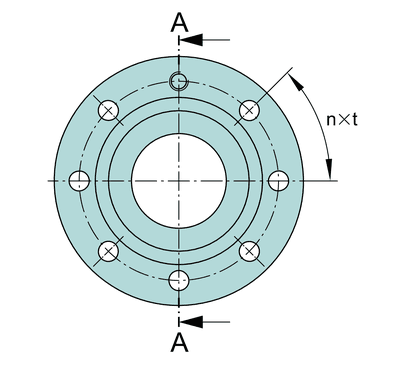

- Pitch circle diameter fixing holes
- 53.0 mm
- Pitch quantity of fixing holes
- 7.0
- Pitch separation angle of fixing holes
- 45.0 °

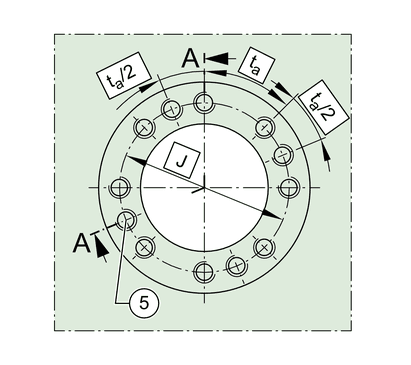

- Pitch separation angle of holes in adjacent construction
- 45.0 °
- Position tolerance of bore in the housing
- 0.1 mm
- REACH
- REACH_YES_597-82-0!
- Recommended INA precision locknut for axial locking
- AM20
- Recommended INA precision locknut for radial locking
- ZMA20/38
- Required locknut force axial
- 8258.0 N
- Rib diameter inner ring
- 34.5 mm
- Rigidity axial
- 1150.0 N/µm
- RoHS
- RoHS compliant
- Sealing
- 2RS
- Size of fixing screws
- M6X70
- Thermally safe operating speed
- 3000.0 1/min
- Tightening torque for the recommended INA precision locknut
- 18.0 Nm
- Tilting rigidity
- 320.0 Nm/mrad
- Width lower tolerance
- -0.5 mm
- Width of extraction slot
- 3.0 mm
- Width upper tolerance
- 0.0 mm
