Description

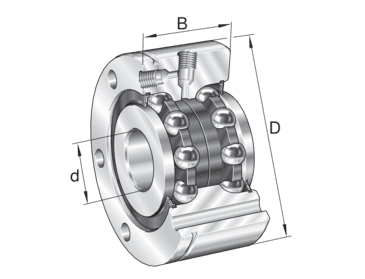

Axial angular contact ball bearing ZKLF..-2RS-PE, double direction, screw mounting
INA
ZKLF2068-2RS-PE
Axial angular contact ball bearing
⌀20 × 68 × 28 mm
od EUR 315.32z VAT
netto EUR 256.36 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
ZKLF2068-2RS-PE—
EUR 315.32
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)ZKLF2068-2RS-PE#N1
EAN4012802078657
Wymiary⌀20 × 68 × 28 mm
Masa594 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
54 parametersIdentification
- Manufacturer
- INA
- Type
- Axial angular contact ball bearing
- Part number (SKU)
- ZKLF2068-2RS-PE#N1
- EAN
- 4012802078657
- Tolerance class
- PE

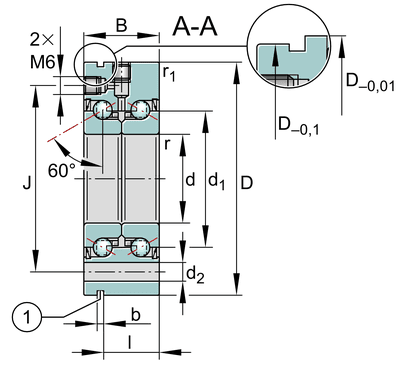

Dimensions
- Bore d
- 20 mm
- Outside diameter D
- 68 mm
- Width B
- 28 mm
- Mass
- 594 g
Load ratings and operation
- Dynamic load rating C
- 26000 N
- Static load rating C₀
- 47000 N
- Sealing
- 2RS
Full manufacturer specification42 parameters · expand
- Axial runout
- 5.0 µm
- Basic dynamic load rating, axial
- 26000.0 N
- Basic static load rating, axial
- 47000.0 N
- Bearing frictional torque
- 0.3 Nm
- Bore diameter lower tolerance
- -0.01 mm
- Bore diameter upper tolerance
- 0.0 mm
- Connection thread for lubrication
- M6
- Contact angle
- 60.0 °
- Distance of extraction slot
- 19.0 mm
- Fatigue load limit, axial
- 2130.0 N
- Fixing holes diameter
- 6.8 mm
- Limiting speed for grease lubrication
- 6600.0 1/min
- Mass moment of inertia
- 0.273 kg*cm²
- Maximum diameter of housing
- 43.0 mm
- Minimum chamfer dimension
- 0.3 mm
- Minimum diameter shaft
- 25.0 mm
- Number of holes in adjacent construction
- 4.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- Outside diameter lower tolerance
- -0.013 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- nein

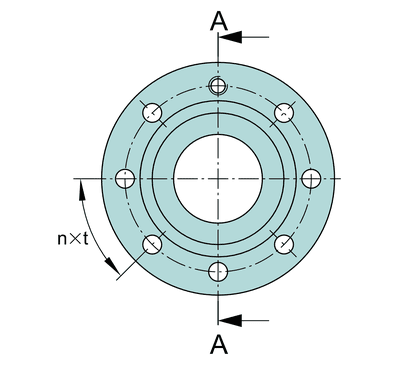

- Pitch circle diameter fixing holes
- 53.0 mm
- Pitch quantity of fixing holes
- 8.0
- Pitch separation angle of fixing holes
- 45.0 °
- Pitch separation angle of holes in adjacent construction
- 90.0 °
- Position tolerance of bore in the housing
- 0.1 mm
- REACH
- REACH conform
- Recommended INA precision locknut for axial locking
- AM20
- Recommended INA precision locknut for radial locking
- ZM20
- Required locknut force axial
- 8258.0 N
- Rib diameter inner ring
- 34.5 mm
- Rigidity axial
- 650.0 N/µm
- RoHS
- RoHS compliant
- Sealing
- 2RS
- Size of fixing screws
- M6
- Thermally safe operating speed
- 3000.0 1/min
- Tightening torque for the recommended INA precision locknut
- 18.0 Nm
- Tilting rigidity
- 140.0 Nm/mrad
- Width lower tolerance
- -0.25 mm
- Width of extraction slot
- 3.0 mm
- Width upper tolerance
- 0.0 mm
