Description
Axial angular contact ball bearings ZKLF..-2Z, double direction, for screw mounting, gap seals on both sides
INA
ZKLF40115-2Z-XL
Axial angular contact ball bearing
⌀40 × 115 × 46 mm
od EUR 1,083.89z VAT
netto EUR 881.21 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
ZKLF40115-2Z-XL—
EUR 1,083.89
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)ZKLF40115-2Z-XL#N1-I1
EAN4012802421125
Wymiary⌀40 × 115 × 46 mm
Masa2.54 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
55 parametersIdentification
- Manufacturer
- INA
- Type
- Axial angular contact ball bearing
- Part number (SKU)
- ZKLF40115-2Z-XL#N1-I1
- EAN
- 4012802421125
- Tolerance class
- Standard
Dimensions
- Bore d
- 40 mm
- Outside diameter D
- 115 mm
- Width B
- 46 mm
- Mass
- 2.54 kg
Load ratings and operation
- Dynamic load rating C
- 79000 N
- Static load rating C₀
- 149000 N
- Sealing
- 2Z
Full manufacturer specification43 parameters · expand
- Axial runout
- 2.5 µm
- Basic dynamic load rating, axial
- 79000.0 N
- Basic static load rating, axial
- 149000.0 N
- Bearing frictional torque
- 0.65 Nm
- Bore diameter lower tolerance
- -0.005 mm
- Bore diameter upper tolerance
- 0.0 mm
- Connection thread for lubrication
- M6
- Contact angle
- 60.0 °
- Distance of extraction slot
- 36.0 mm
- Fatigue load limit, axial
- 9100.0 N
- Fixing holes diameter
- 8.8 mm
- Limiting speed for grease lubrication
- 4400.0 1/min
- Marketing category
- XL
- Mass moment of inertia
- 5.5 kg*cm²
- Maximum diameter of housing
- 80.0 mm
- Minimum chamfer dimension
- 0.6 mm
- Minimum diameter shaft
- 56.0 mm
- Number of holes in adjacent construction
- 12.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- Outside diameter lower tolerance
- -0.01 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- nein

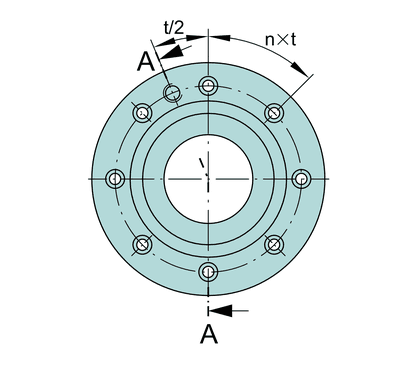

- Pitch circle diameter fixing holes
- 94.0 mm
- Pitch quantity of fixing holes
- 12.0
- Pitch separation angle of fixing holes
- 30.0 °
- Pitch separation angle of holes in adjacent construction
- 30.0 °
- Position tolerance of bore in the housing
- 0.2 mm
- REACH
- REACH conform
- Recommended INA precision locknut for axial locking
- AM40
- Recommended INA precision locknut for radial locking
- ZMA40/62
- Required locknut force axial
- 25815.0 N
- Rib diameter inner ring
- 65.0 mm
- Rigidity axial
- 1200.0 N/µm
- RoHS
- RoHS compliant
- Sealing
- 2Z
- Size of fixing screws
- M8
- Thermally safe operating speed
- 3100.0 1/min
- Tightening torque for the recommended INA precision locknut
- 110.0 Nm
- Tilting rigidity
- 750.0 Nm/mrad
- Width lower tolerance
- -0.25 mm
- Width of extraction slot
- 3.0 mm
- Width upper tolerance
- 0.0 mm
