Description
Angular contact ball bearing units ZKLFA..-2Z, double direction, for screw mounting, gap seals on both sides
INA
ZKLFA0630-2Z
Axial angular contact ball bearing
⌀6 × 19 × 12 mm
od EUR 423.40z VAT
netto EUR 344.23 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
ZKLFA0630-2Z—
EUR 423.40
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)ZKLFA0630-2Z#N1
EAN4012802445886
Wymiary⌀6 × 19 × 12 mm
Masa38.5 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
47 parametersIdentification
- Manufacturer
- INA
- Type
- Axial angular contact ball bearing
- Part number (SKU)
- ZKLFA0630-2Z#N1
- EAN
- 4012802445886
Dimensions
- Bore d
- 6 mm
- Outside diameter D
- 19 mm
- Width B
- 12 mm
- Mass
- 38.5 g
Load ratings and operation
- Dynamic load rating C
- 4550 N
- Static load rating C₀
- 5700 N
- Sealing
- 2Z
Full manufacturer specification36 parameters · expand
- Axial runout
- 2.0 µm
- Basic dynamic load rating, axial
- 4550.0 N
- Basic static load rating, axial
- 5700.0 N
- Bearing friction torque
- 0.01 Nm
- Bore diameter lower tolerance
- -0.003 mm
- Bore diameter upper tolerance
- 0.002 mm
- Fatigue load limit, axial
- 260.0 N
- Fixing boring diameter
- 3.5 mm

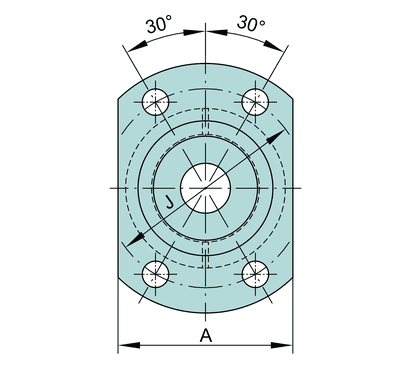

- Flange width
- 22.0 mm
- Limiting speed for grease lubrication
- 22800.0 1/min
- Locknut force axial
- 2010.0 N
- Mass moment of inertia
- 0.0019 kg*cm²
- Maximum diameter of shaft shoulder
- 15.0 mm
- Minimum chamfer dimension
- 0.3 mm
- Minimum diameter shaft shoulder
- 9.0 mm
- Number of screws
- 4.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- Outside diameter lower tolerance
- -0.01 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- nein

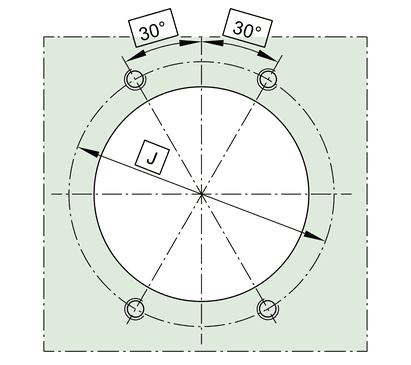

- Pitch circle diameter (holes)
- 24.0 mm
- Position tolerance
- 0.1 mm
- REACH
- REACH conform
- Recommended INA precision locknut for radial locking (not included)
- ZM06
- Rib diameter inner ring
- 12.0 mm
- Rigidity axial
- 150.0 N/µm
- RoHS
- RoHS compliant
- Screw size
- M3
- Sealing
- 2Z
- Thermally permissible speed
- 14000.0 1/min
- Thickness of flange
- 5.0 mm
- Tightening torque nut
- 2.0 Nm
- Tilting stiffness
- 4.0 Nm/mrad
- Width lower tolerance
- -0.25 mm
- Width upper tolerance
- 0.0 mm
