Description

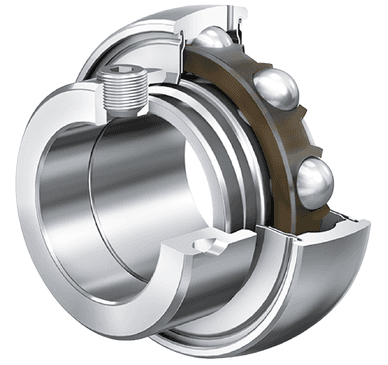

Radial insert ball bearing GRAE..-XL-NPP-B
INA
GRAE12-XL-NPP-B
Radial insert ball bearing
⌀12 × 40 × 19 mm
od EUR 12.77z VAT
netto EUR 10.38 · cena detaliczna
GRAE12-XL-NPP-B—
EUR 12.77
Cheaper in larger quantities
| from 250 pcs | EUR 9.86 | −5% |
Last few (13)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)GRAE12-XL-NPP-B#N1
EAN4012802783605
Wymiary⌀12 × 40 × 19 mm
Masa130 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
26 parametersIdentification
- Manufacturer
- INA
- Type
- Radial insert ball bearing
- Part number (SKU)
- GRAE12-XL-NPP-B#N1
- EAN
- 4012802783605
Dimensions
- Bore d
- 12 mm
- Outside diameter D
- 40 mm
- Width B
- 19 mm
- Mass
- 130 g
Load ratings and operation
- Dynamic load rating C
- 9800 N
- Static load rating C₀
- 4750 N
- Sealing
- NPP
Full manufacturer specification15 parameters · expand
- Calculation factor
- 13.0
- Distance raceway
- 6.5 mm
- Distance to lubrication hole
- 3.4 mm
- Fatigue load limit, radial
- 248.0 N
- Locking collar total width
- 28.6 mm
- Marketing category
- XL
- Outside diameter locking collar/locknut
- 28.4 mm
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- Rib diameter sealing inner ring
- 23.0 mm
- RoHS
- RoHS compliant with declarable substances
- Sealing
- NPP
- Shape of outer surface
- B
- Width of flats
- 3.0 mm
- Width, outer ring
- 12.0 mm
