Description

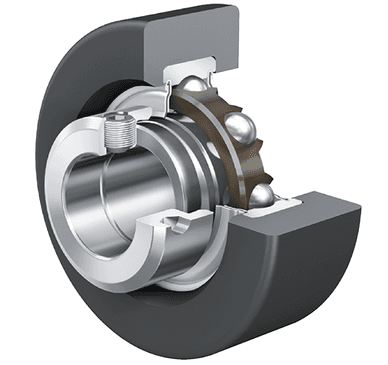

Radial insert ball bearings RCSM, with rubber interliner, location by eccentric locking collar, P seals on both sides
INA
RCSMB15/65-XL-FA106
Radial insert ball bearing
⌀15 × 65.1 mm
od EUR 21.27z VAT
netto EUR 17.29 · cena detaliczna
EUR 22.30−5%
RCSMB15/65-XL-FA106—
EUR 22.30
EUR 21.27Cheaper in larger quantities
| from 10 pcs | EUR 17.77 | −2% |
| from 50 pcs | EUR 17.41 | −4% |
| from 250 pcs | EUR 17.22 | −5% |
Last few (10)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)RCSMB15/65-XL-FA106#N1
EAN4012802790177
Wymiary⌀15 × 65.1 mm
Masa195 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
25 parametersIdentification
- Manufacturer
- INA
- Type
- Radial insert ball bearing
- Part number (SKU)
- RCSMB15/65-XL-FA106#N1
- EAN
- 4012802790177
Dimensions
- Bore d
- 15 mm
- Outside diameter D
- 65.1 mm
- Mass
- 195 g
Load ratings and operation
- Dynamic load rating C
- 10100 N
- Static load rating C₀
- 4750 N
Full manufacturer specification16 parameters · expand
- Bearing designation
- RAE15-XL-NPP-FA106
- Calculation factor
- 13.0
- Distance raceway of rubber interliner to face side
- 12.7 mm
- Distance raceway to locking collar
- 22.1 mm
- Fatigue load limit, radial
- 248.0 N
- Flange diameter rubber interliner
- 35.0 mm
- Hardness rubber interliner
- 70.0 °
- Load carrying capacity (rubber interliner)
- 900.0 N
- Locking collar total width
- 28.6 mm
- Manufacturing instruction
- FA106
- Marketing category
- XL
- Outside diameter locking collar/locknut
- 28.4 mm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Width, outer ring
- 25.4 mm
