Description

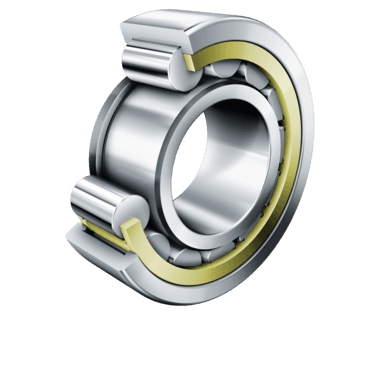

Cylindrical roller bearing NJ..-E..-MPAX-ILR, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
FAG
NJ2326-E-XL-MPAX-ILR-C3
Cylindrical roller bearing
⌀130 × 280 × 93 mm
od EUR 3,162.07z VAT
netto EUR 2,570.79 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NJ2326-E-XL-MPAX-ILR-C3—
EUR 3,162.07
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NJ2326-E-XL-MPAX-ILR-C3#N1
EAN4064328083998
Wymiary⌀130 × 280 × 93 mm
Masa29.20 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
31 parametersIdentification
- Manufacturer
- FAG
- Type
- Cylindrical roller bearing
- Part number (SKU)
- NJ2326-E-XL-MPAX-ILR-C3#N1
- EAN
- 4064328083998
- Cage
- MPAX
- Tolerance class
- PN
Dimensions
- Bore d
- 130 mm
- Outside diameter D
- 280 mm
- Width B
- 93 mm
- Mass
- 29.20 kg
- Radial clearance
- C3 (Group 3)
Load ratings and operation
- Dynamic load rating C
- 1340000 N
- Static load rating C₀
- 1220000 N
- Limiting speed
- 4250 1/min
Full manufacturer specification17 parameters · expand
- Axial displacement
- 8.2 mm
- Cage
- MPAX
- Design
- E
- Fatigue load limit, radial
- 198000.0 N
- Maximum diameter of housing shoulder
- 266.0 mm
- Maximum rib diameter inner ring
- 181.7 mm
- Minimum chamfer dimension
- 4.0 mm
- Minimum rib diameter outer ring
- 235.2 mm
- Number of rows
- 1
- Operating temperature max.
- 150.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Raceway diameter inner ring
- 167.0 mm
- Raceway diameter outer ring
- 247.0 mm
- Radial internal clearance
- C3 (Group 3)
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 1750.0 1/min
