Description

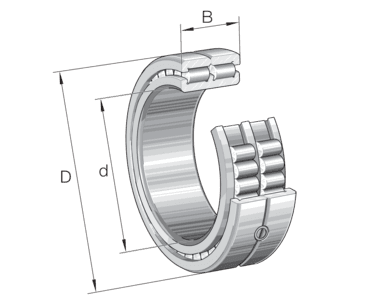

Cylindrical roller bearings SL0149, locating bearing, double row, full complement cylindrical roller set, dimension series 49
INA
SL014924-A
Cylindrical roller bearing
⌀120 × 165 × 45 mm
od EUR 322.81z VAT
netto EUR 262.45 · cena detaliczna
EUR 370.55−13%
SL014924-A—
EUR 370.55
EUR 322.81Cheaper in larger quantities
| from 10 pcs | EUR 295.23 | −2% |
| from 50 pcs | EUR 289.21 | −4% |
Last few (1)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)SL014924-A#N1>1
EAN4054365455803
Wymiary⌀120 × 165 × 45 mm
Masa2.87 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
32 parametersIdentification
- Manufacturer
- INA
- Type
- Cylindrical roller bearing
- Part number (SKU)
- SL014924-A#N1>1
- EAN
- 4054365455803
- Tolerance class
- PN
Dimensions
- Bore d
- 120 mm
- Outside diameter D
- 165 mm
- Width B
- 45 mm
- Mass
- 2.87 kg
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 222000 N
- Static load rating C₀
- 440000 N
- Limiting speed
- 2260 1/min
Full manufacturer specification19 parameters · expand
- Bearing designation DIN5412
- NNC4924V
- Design
- A
- Distance to lubrication hole
- 22.5 mm
- Fatigue load limit, radial
- 56000.0 N
- Maximum diameter of housing shoulder
- 149.0 mm
- Maximum recess radius
- 1.1 mm
- Maximum rib diameter inner ring
- 138.6 mm
- Minimum chamfer dimension
- 1.1 mm
- Minimum diameter shaft shoulder
- 138.6 mm
- Minimum rib diameter outer ring
- 148.6 mm
- Minimum shaft shoulder
- 138.5 mm
- Number of rows
- 2
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Radial internal clearance
- CN (Group N)
- REACH
- REACH conform
- Reference speed
- 1540.0 1/min
- RoHS
- RoHS compliant
